Pre filters

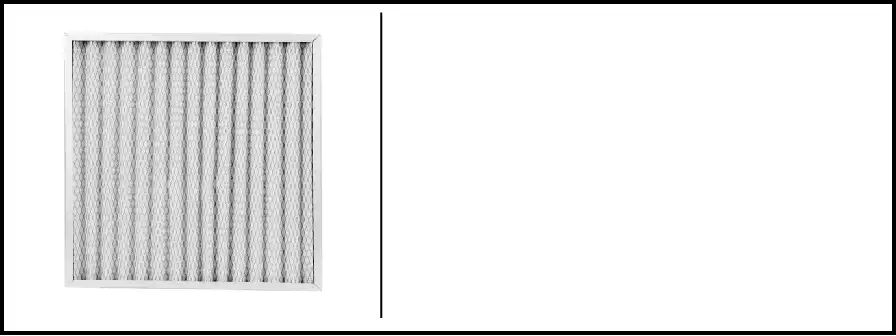

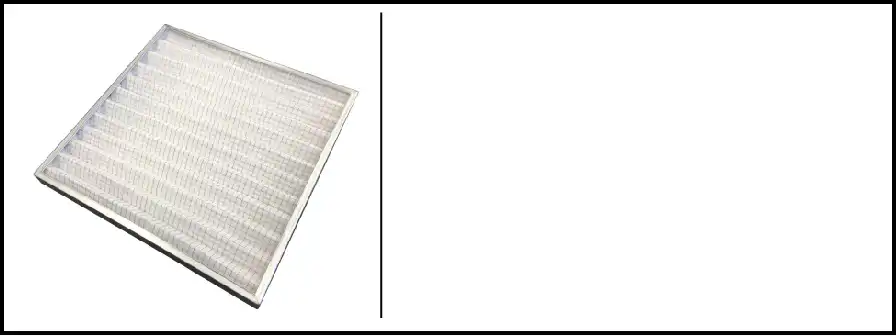

We supply wide range of panel filters to answer the demands of our customers to remove air contamination such as coarse dust, pollen etc. as prefilters or as final filters in air conditioning applications. The high quality synthetic and glass fiber media used in Panel Filter gives optimum performance with suitable pleat height. The water-resistant plastic frame provides extra assurance in high-humidity applications.
Panel Filters are suitable for all standard application in any efficiencies and sizes. For applications requiring increased service life, please select corresponding filters out of filter range.
Panel Filters are tested in accordance with European Standard EN779 and ISO 16890.
Some of the key features and benefits of Filsure panel filters are:
- Heavy gauge galvanized construction.
- Cleanable (For Synthetic media).
- Long service life.
- Small transportation volume.
- Low pressure drops.
- Easy installation.
- High dust holding capacity and filtration area.
- Suitable for use by intake air pre-filtration in coastal, offshore and other high humidity locations.
- Reliable service even at 100% relative humidity.
- Tested and certified as per EN 779 / ISO 16890.
- High resistance to humidity (Coalescing property).
Application fields of Filsure panel filters are:
- Food equipment and beverage dispensers.
- Pre-filtration to protect final filter.
- Data Centers.
- Pharmaceutical.
- Food processing facilities, Food and Beverage industry.
- Electronics plants.
- As a pre-filter stage to protect final stage HEPA / EPA / T class filters.
Key Specification:
- Standard depth : 24, 48 and 96 mm.
- Frame : Galvanized, Aluminum or Stainless steel.
- Media : Synthetic or Glass fiber.
- Maximum operating temperature : 70 Deg.C
- Faceguard : Without (Available on request).
- Final pressure drop : 400 Pa.
- Burst strength : Less than 6000 Pa (25" wg).
- Filter class : G4 and M6.
For more details refer below Filsure pocket filter catalougue:
